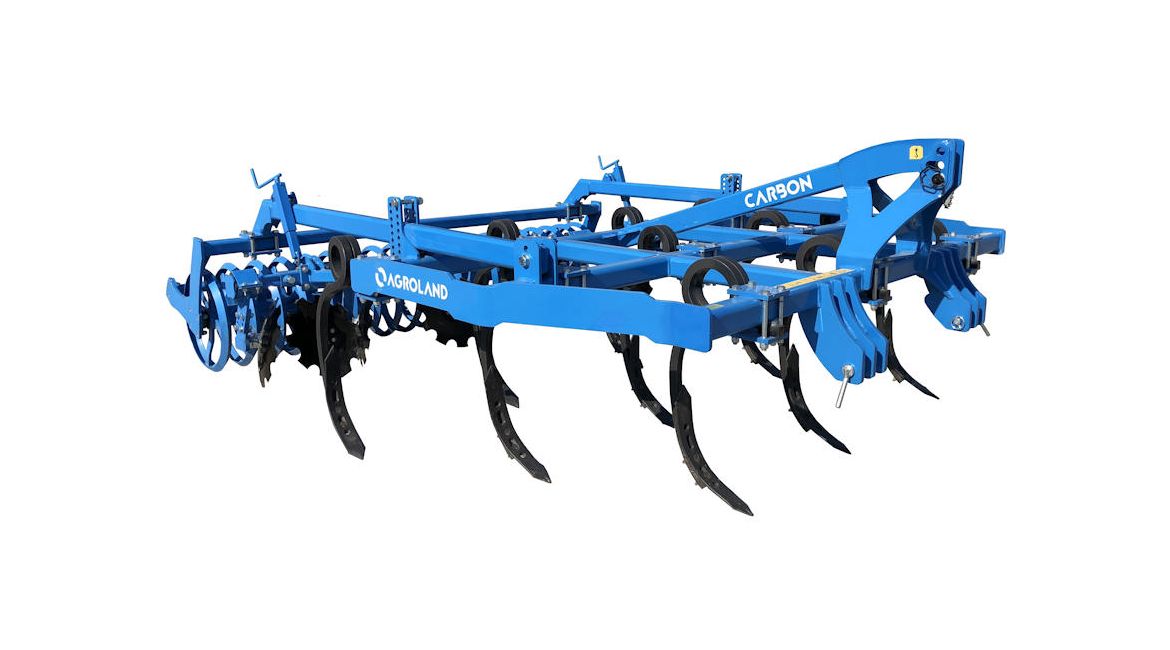

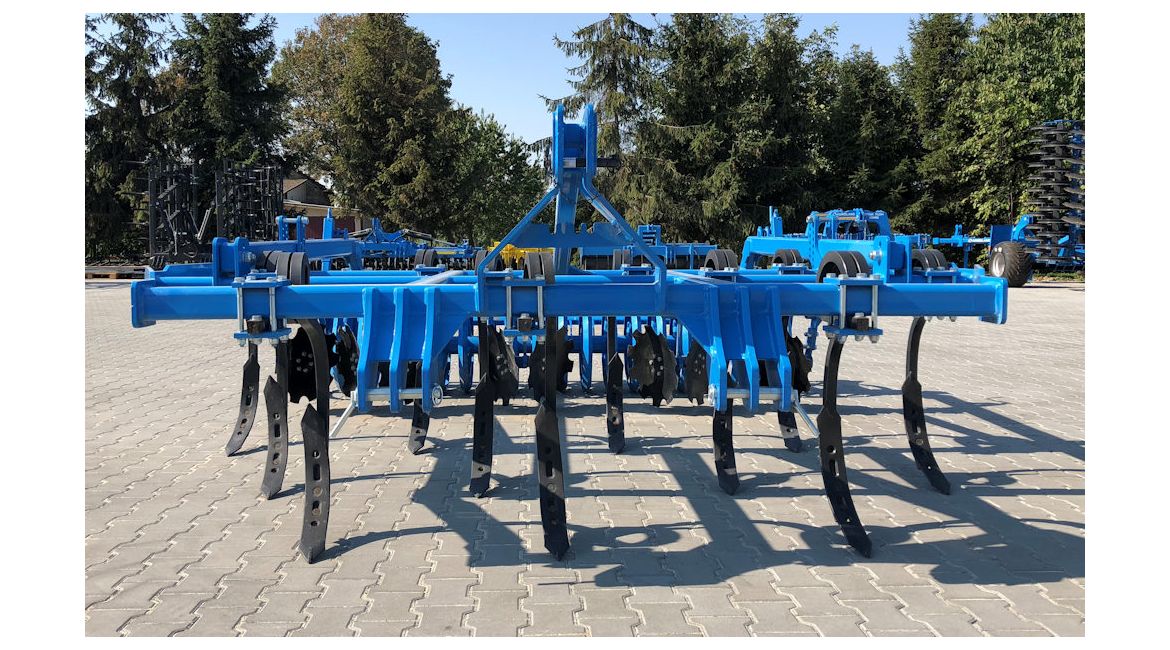

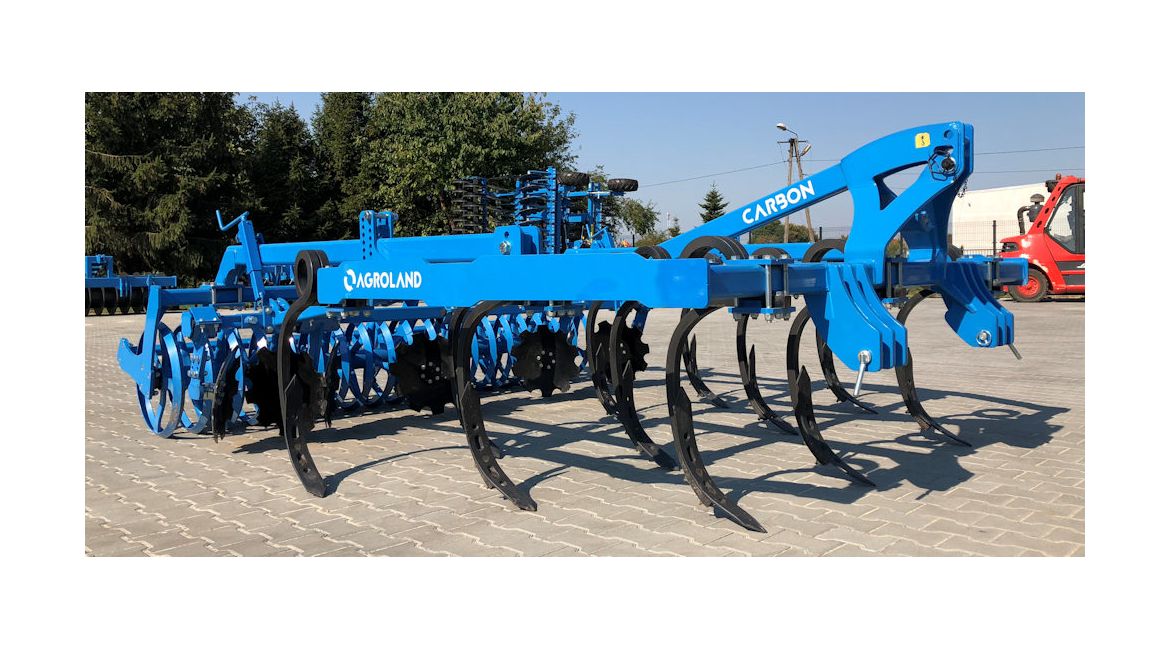

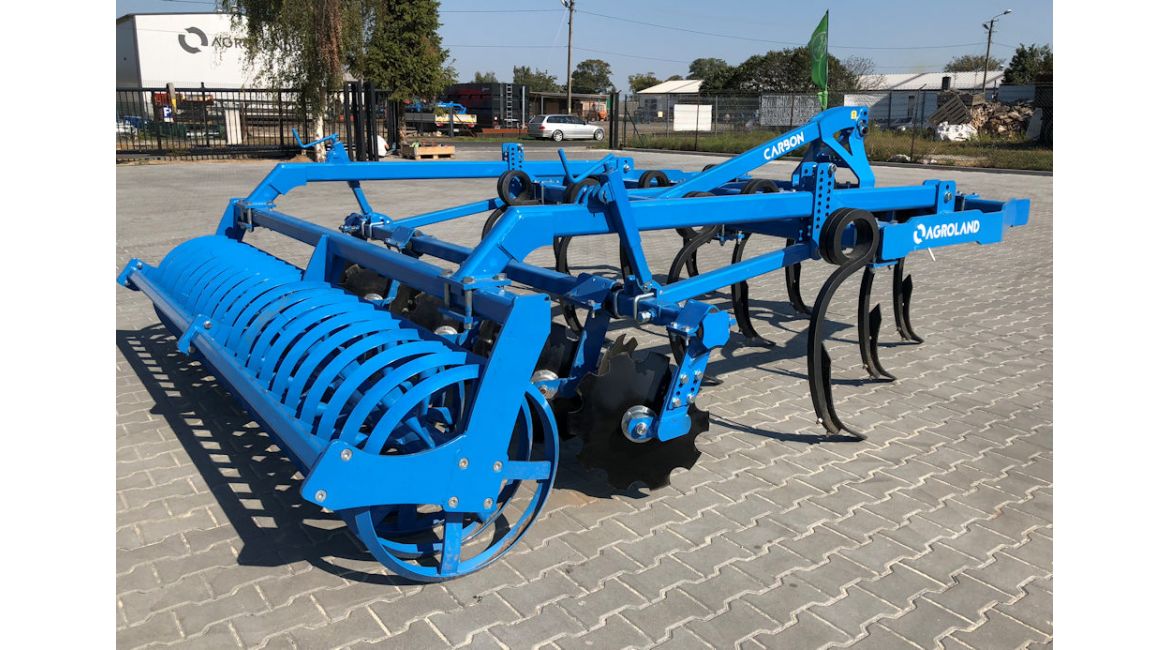

Carbon

Technical parameters	Units	CA260	CA300	CA400	CA500
Working width	mm	2600	3000	4000	5000
Transporting width	mm	2600	3000	2280	2280
Length	mm	3900	3900	3900	3900
Weight	kg	1050	1250	2100	2500
Maximal working depth	mm	300	300	300	300
No. of tines	pc.	9	10	13	15
Span of tines	mm	35×35	35×35	35×35	35×35
No. of rows of tines	pc.	3	3	3	3
Span of rows	mm	720	720	720	720
Frame clearance	mm	850	850	850	850
Disc diameter	mm	460	460	460	460
Power demand	HP	120	150	180	200
