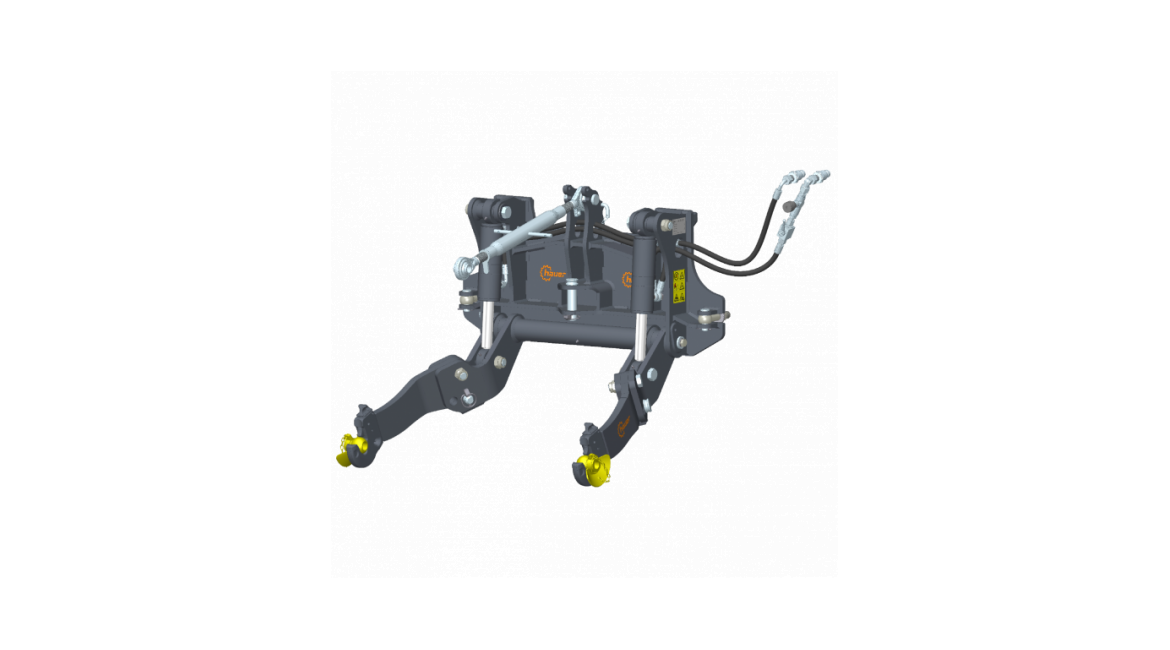

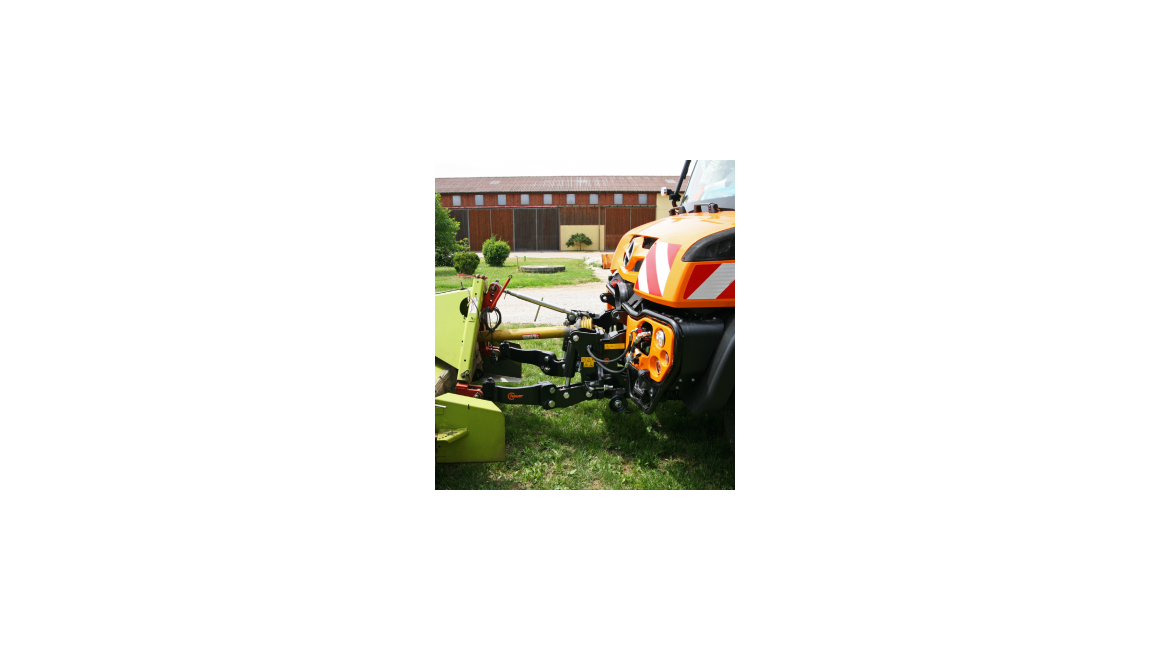

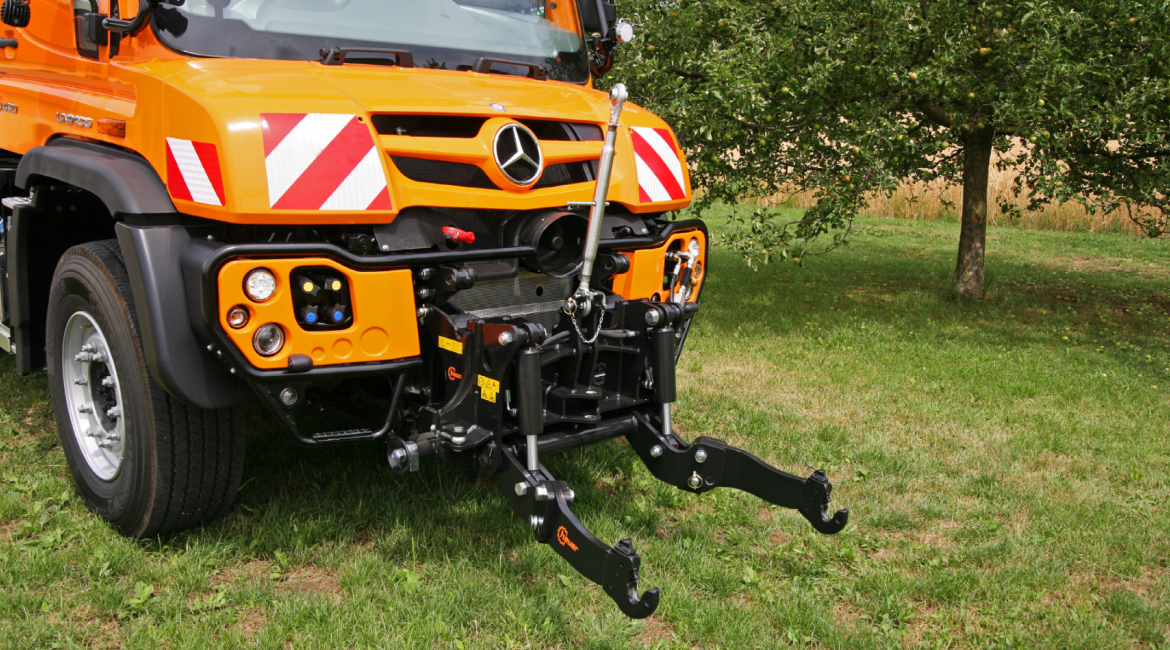

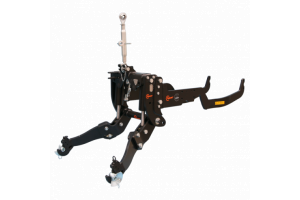

THE FRONT LINKAGE FOR UNIMOG

The front linkage FSU was especially developped for Unimog vehicles 200, 300, 400 and 500 Bluetec 6. It is available with different lifting forces from 1.400 to 2.170 kg suitable for the different vehicle types.

As part of the Mercedes-Benz Unimog Expert-partnership, the FSU front linkage has all the necessary clearences from Mercedes-Benz for worldwide use and dirstibution through the Unimog dealer network.

Rugged design


  • Rugged premium-quality steel weldment
  • Beefy lower links
  • Massive threaded assemblies and pins

All that counts at one glance


  • Attached to the coupling plate CP 3 / CP 5 or to front mounting plate DIN 76060 Form B size 3 or Form A size 5
  • Compact design
  • The foldable lower links are close to the machine and have Walterscheid couplers
  • Comprehensive level of standard specification
  • Compatible with PTO

Comprehensive standard specification


  • Foldable and detachable lower links
  • Walterscheid couplers
  • Lockable pendulum compensation
  • Ball sockets on rams
  • Double-acting lift rams
  • Tap
  • Lowering speed control valve in the lifting line
  • Integrated coupling device
  • Top link
  • Incl. screws and bolts
  • 2 coupling connectors flat sealing ISO 16028, DN 12,5 or with H86: 2 coupling connectors Standard ISO 7241-1, DN 12,5 for connection to cell 1 (left side of vehicle)

Options


  • Rear counter weight (empty 165 kg, filled with gravel approx. 950 kg)
